Product > ProductCatalog > Water treatment uv lamps
UV1600 1800 Photometer Tungsten lamp 916634 916633 A510MCU(deuterium lamp A510) $165
Unit Price:$165.00
Model No.︰
A510MCU A510
Brand Name︰MAPADA
Country of Origin︰USA
Added time:2025-11-06
Product Details

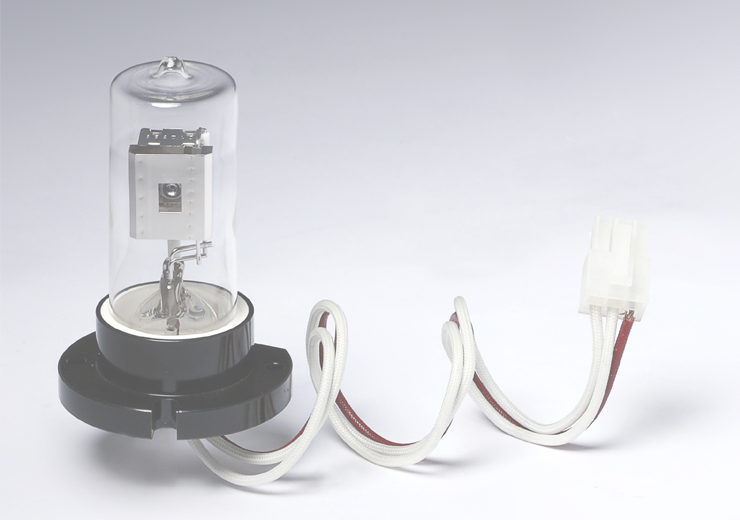

Light source: Replacement UV1600 1800 Photometer Tungsten lamp 916634 916633 A510MCU (deuterium lamp A510)
Model: A510
Specifications: Deuterium lamp compatible
Wavelength range: 160nm-400nm (nm)
Light source: Deuterium lamp tungsten lamp
Model: A510
Specifications: Compatible with deuterium lamp, original deuterium lamp A510, tungsten lamp 916634
Product name: 916633 Deuterium lamp.
Lamp type: black aluminum alloy flange.
Product Description: Deuterium lamps are a type of arc discharge light source found in gas discharge lamps. When operating, they radiate a continuously distributed UV spectrum from 160nm to 400nm from their optical window. Therefore, they are currently the ideal UV light source for UV spectrophotometers and liquid chromatographs.
Preheat voltage: 2.5V.
Preheating current: 0.8A.
Trigger voltage: 350 min DC (V).
Lamp current: 300mA.
Optical center height: 22mm.
Instructions for use:
1. The lamp has three leads, two of the same color are filaments, and the other is the anode.
2. After installation and commissioning, the light window must be cleaned with alcohol cotton to avoid contamination and affect the UV transmittance.
3. In order to ensure the good stability of the lamp, the stability of the power supply is required to be no less than 0.05%.
4. When the lamp is working, the naked eye should not be allowed to directly observe the light spot to avoid eye damage.
5. This lamp is interchangeable with the same type lamps.
The UV-1800 proportional dual-beam UV-visible spectrophotometer facilitates photometric analysis, quantitative analysis, and kinetic testing through simple parameter settings. Combined with professional Mapada scanning analysis software, it enables full-wavelength spectral scanning and multi-wavelength testing.
1. The instrument uses a 128×64 dot matrix LCD display, which can directly display the standard curve and its equation, kinetic test curve, and can display 200 sets of test data at the same time;
2. It is the first time that dynamics testing can be performed on a low-cost instrument host;
3. Can store up to 100 standard curves and 200 sets of test data;
4. Uniquely designed optical system, 1200 lines/mm grating and imported receiver ensure the instrument has excellent performance indicators;
5. Automatic wavelength calibration, automatic wavelength setting, automatic light source switching; automatic control of deuterium lamp and tungsten lamp switching; real-time monitoring of lamp lighting time;
6. Large sample chamber, can accommodate cuvettes of various sizes from 5 to 100 mm
7. Membrane buttons, simple and convenient operation;
8. Adopt USB data output interface which is in sync with international trends, and can be equipped with Meipuda data processing software for online testing;
9. Socket-type deuterium lamp and tungsten lamp design, no optical adjustment required when changing lamps;
10. Optional Mapada scanning professional software can realize a variety of powerful functions including photometric measurement, quantitative analysis (including standard curve function), full wavelength spectrum scanning, kinetic (time) scanning, multi-wavelength testing, DNA/protein, etc., fully meeting your diverse testing requirements.
We support retail and wholesale. Any questions, please email: service@uvebay.com
