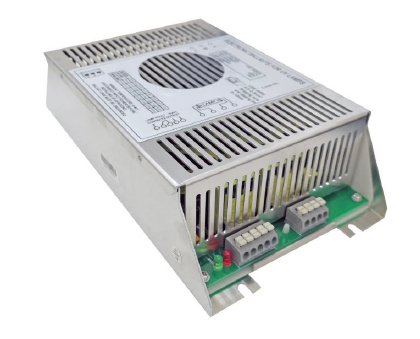

UVP10-AL-800 UV ballast 198-264V $360
Unit Price:$360.00
Model No.︰ UVP10-AL-800
Brand Name︰Light Sources
Country of Origin︰USA
Added time:2022-09-26
Quantity

Product Details
Technical Specifications

Mains Voltage: 230VAC

Power Factor: >0.98

Efficiency: >94%

Operating Frequency: 40-60KHz

Starting: Preheat

Dimensions: 250*141*50mm

Lamp status indication via LED indication

Green LED: lamp on

Red LED: lamp fault

Lamp status forwarding

Potential free relay contacts for lamp on/lamp fault.

Installation Requirement

Wire Gauge: 1.0-1.5mm2

Max. cable length between ballasts and lamp: 5m

Relay contacts: potential free, load: 50…500mA at 24…230V AC;

                                50…500mA at 5…60V DC

DC5V±5% 5mA: lamp on.

DC0V: lamp fault or no lamp.

Mounting Restrictions

Disconnect Input Power Before Installing or Servicing.

Ballast Case Must Be Grounded.

Don’t short any two wires of the four outputs.

Features

Starting: Preheat

Applications

All areas of applications include UV lamps.

Industrial water treatment

Municipal water treatment

Water injection for oilfield



Type

Input Voltage (V)

Input Power

(W)

Input Current (A)

Power Per Lamp

(W)

Lamp Current (A)

Weight (kg)

UVP10-AL-800

198-264

851

3.7A@230V

800W

7.0-8.0

1.2
