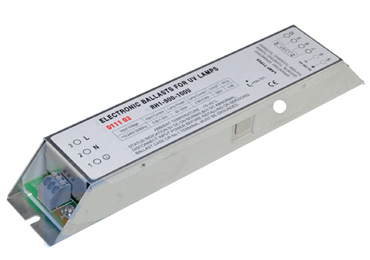

55-95W uv ballast $45
Unit Price:$45.00
Model No.︰ PA1-900-100U
Brand Name︰Beasun
Country of Origin︰China
Added time:2021-08-21
Quantity

Product Details

Technical Specifications

Mains Voltage: 99-264V

Mains Frequency: 50/60Hz

Power Factor: >0.99

Efficiency: >90%

Operating Frequency: 34KHz

Dimensions: 217*42*26mm



Installation Requirement

Wire Gauge: 0.5-1.5mm2

Max. cable length between ballasts and lamp: 3m

LED specification: Vf=1.8-3.6V If=5-20mA



Mounting Restrictions

Disconnect Input Power Before Installing or Servicing.

Ballast Case Must Be Grounded.

Don’t short any two wires of the four outputs.



Features

Starting: Preheat

Lamp status indication via DC signal output

DC 5V±5% (5mA): lamp on.

DC 0V: lamp fault or no lamp.

Connect LED.



Applications

e      Air purification

e      Industrial water treatment

e      Kitchen purification



Type

Input Voltage (V)

Input Power

(W)

Input Current (A)

Power Per Lamp

(W)

Lamp Current (A)

Weight (kg)

PA1-900-100U

198-264

90

0.65A@230V

55-95

0.75-0.85

0.22
