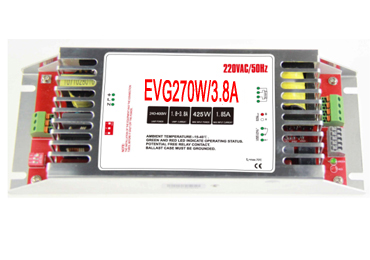

EVG270W/3.8A UV ballast $100
Unit Price:$100.00
Model No.︰ EVG270W/3.8A
Brand Name︰ZED EVG
Country of Origin︰USA
Added time:2016-10-26
Quantity

Product Details

Technical specifications

Mains voltage:220V/240V AC

Mains Frequency:50/60Hz

Power Factor:>0.98

Efficiency:>90%

Max. Input Power: 425W

Max. Input Current: 1.85A@230V

Preheat Start

Dimension: 250*95*45mm

IP20 class

Working Temperature: -15-40℃

Lamp status indication via LED indication

Green LED:Lamp on

Red LED:Lamp fault

Lamp status forwarding

Potential free relay contacts for lamp on/lamp fault..

Installation requirement

Wire Gauge:0.5-1.5mm2

Max.cable length between ballasts and lamp:5m

Relay contacts:potential free,

Load:50…500mA at 24…230V AC;

     50…500mA at 5…60V DC

Mounting restrictions

Disconnect Input Power Before Installing or Servicing.

Ballast Case must Be Grounded.

Don’t short any two wires of the four outputs.

Applications

All areas of applications include UV lamps:

Air purification

Municipal water treatment

Industrial water treatment

Water injection for oilfield







Type

Input Voltage(V)

Input Power(W)

Input Current(A)

Power Per Lamp(W)

Lamp Current(A)

Weight(kg)

EVG270W/3.8A

198-305

425

1.85A@230V

200-400

1.8-3.8

0.83
