240W-400W UV ballast 198-305V $300
Unit Price:$300.00
Model No.︰ PC02-AL-2/400
Brand Name︰OEM
Country of Origin︰USA
Added time:2013-11-08
Quantity

Product Details
Technical specifications

Mains voltage:230VAC

Mains Frequency50/60Hz

Power Factor:>0.98

Efficiency:>94%

Operating Frequency:28-80kHz

Dimensions:240*234*50mm

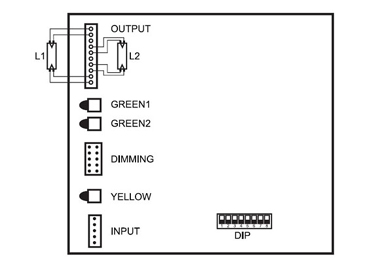

Lamp status indication via LED indication

Green LED:Lamp on

Red LED:Lamp fault

Installation requirement

Wire Gauge:1.5-2.5mm2

Max.cable length between ballasts and lamp:5m

Mounting restrictions

Disconnect Input Power Before Installing or Servicing.

Ballast Case must Be Grounded.

Don’t short any two wires of the four outputs.

Features

Starting:Preheat

4~20mA dimmable function:

The lamp power can be adjusted from 60% to 100%.

Applications

All areas of applications include UV lamps

Municipal water treatment

Industrial water treatment

Water injection for oilfield

More information,please refer to the manual



Type

Input Voltage(V)

Input Power(W)

Input Current(A)

Power Per Lamp(W)

Lamp Current(A)

Weight(kg)

PC02-AL-2/400

198-305

852

3.71A@230V

240-400

1.8-4.8

2.2
